PIN HOLE TESTER mod. PH(盐水针孔)
发布人： 发布日期：2014/3/20 点击数：1629次
产品简介：
产品说明

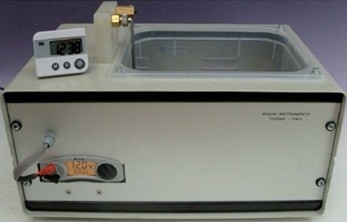

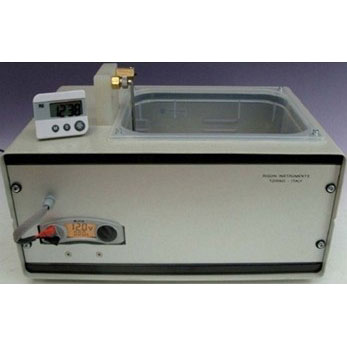

PIN HOLE TESTER mod. PH(盐水针孔)
STANDARDS: IEC 60851 (proposal), JIS C 3003
TEST PROCEDURE:
For diameters less than 0.06 mm ( 42 ½ AWG) a piece of wire 1.5 meters long and 6meters for wire diameter bigger, carry out heat treatment for about 10’ in a thermostatic oven at 125° +/- 3°C.
After heat treatment, without bending nor stretching ,dip the test piece in 0.2% sodium chloride aqueoussolution added with proper quantity of alcohol solution of 3% phenolphthalein, about 1meters in length for wiredia.< 0.06 mm and about 5 meters for big one. Apply 12Vdc by making the solution as positive and thenexamine the numbers of pin holed generated.
Polycarbonate tank and cover.
Adjustable test voltage from 2 up to 24 Vdc with digital readout of test voltage and current .
Digital timer with count down from 1” up to 59’59”.
TECHNICAL SPECIFICATIONS
Power supply 30V 50/60Hz 1phase 25VA
Dimensions w 600 x d 290 x h 195 mm
Weight 9 kg 19.8 lb
